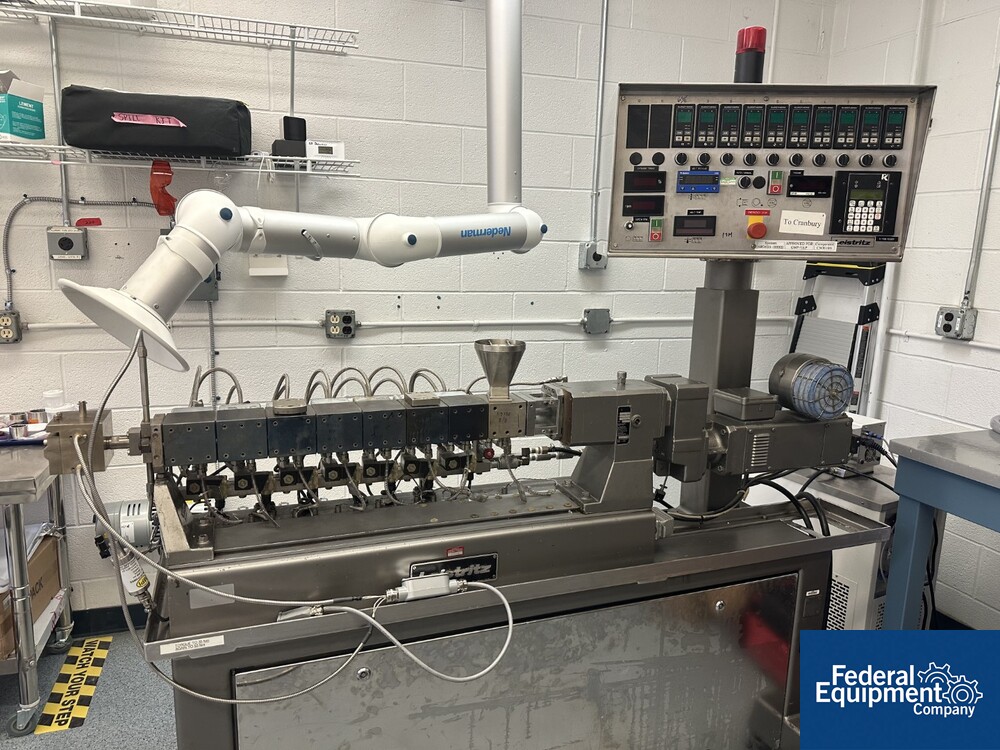

Leistritz Twin Screw Pelletizing Line, model Micro18-GG

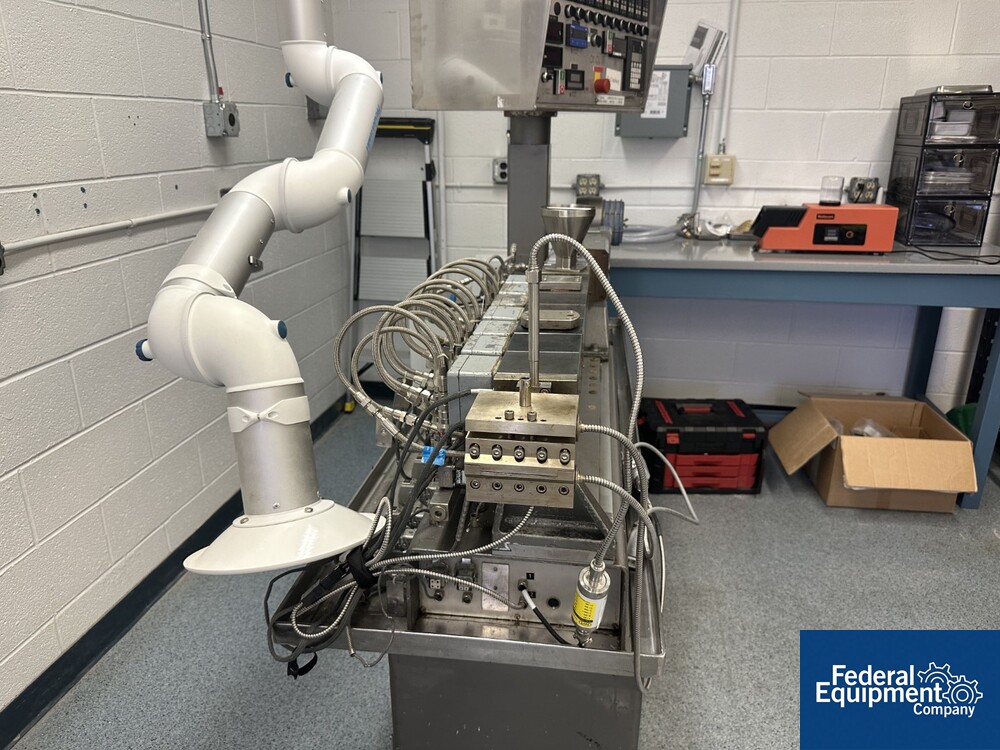

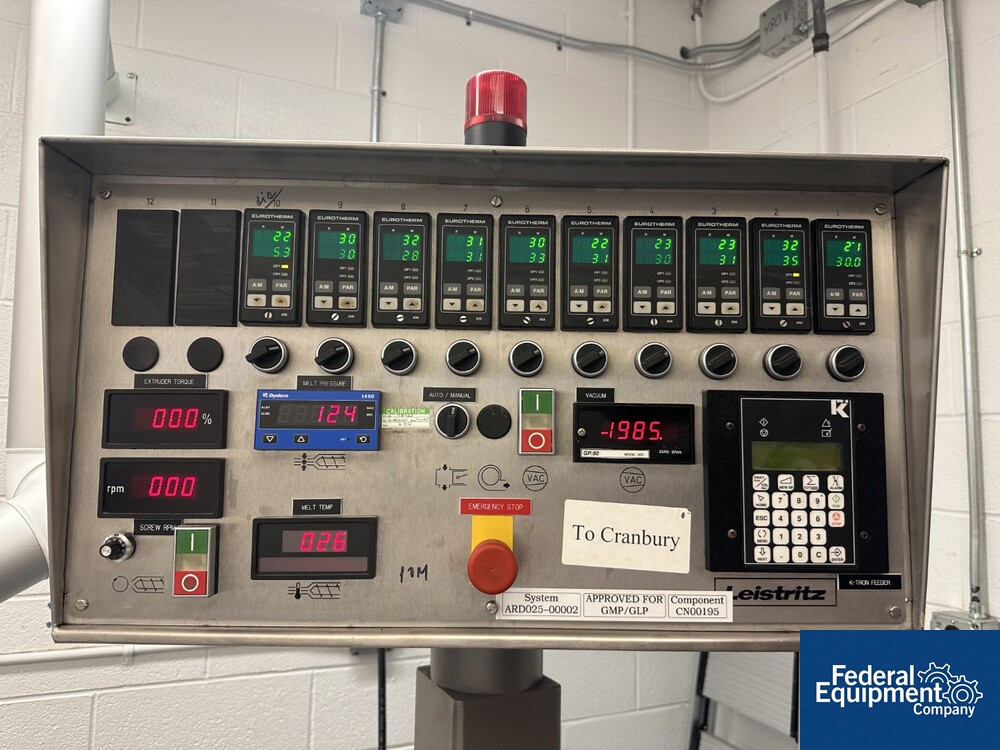

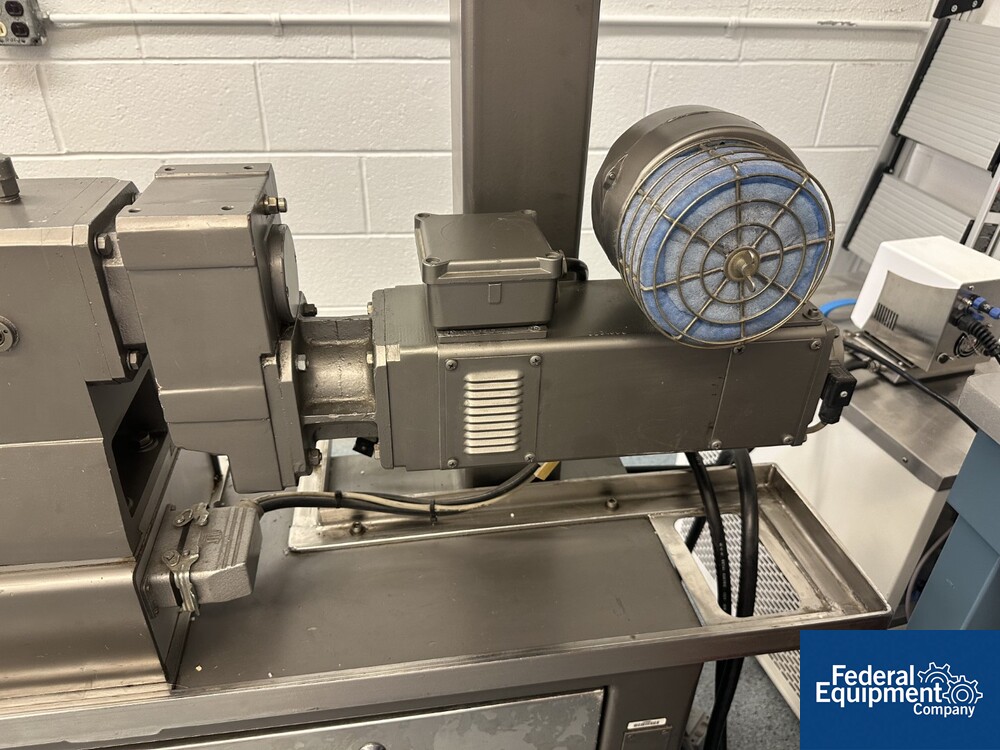

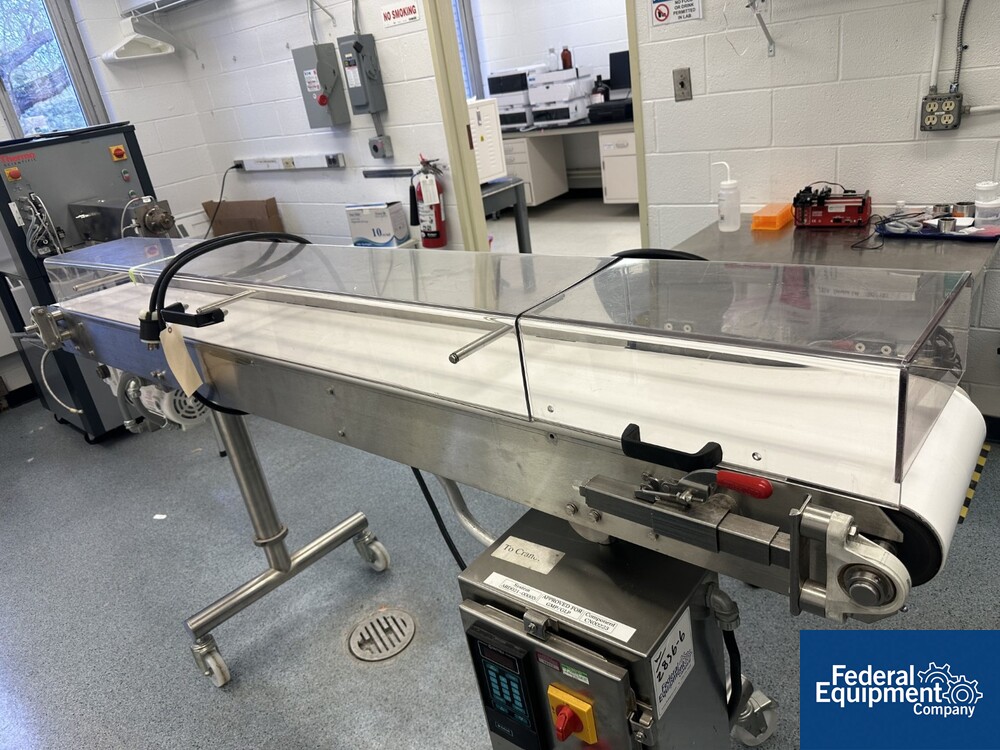

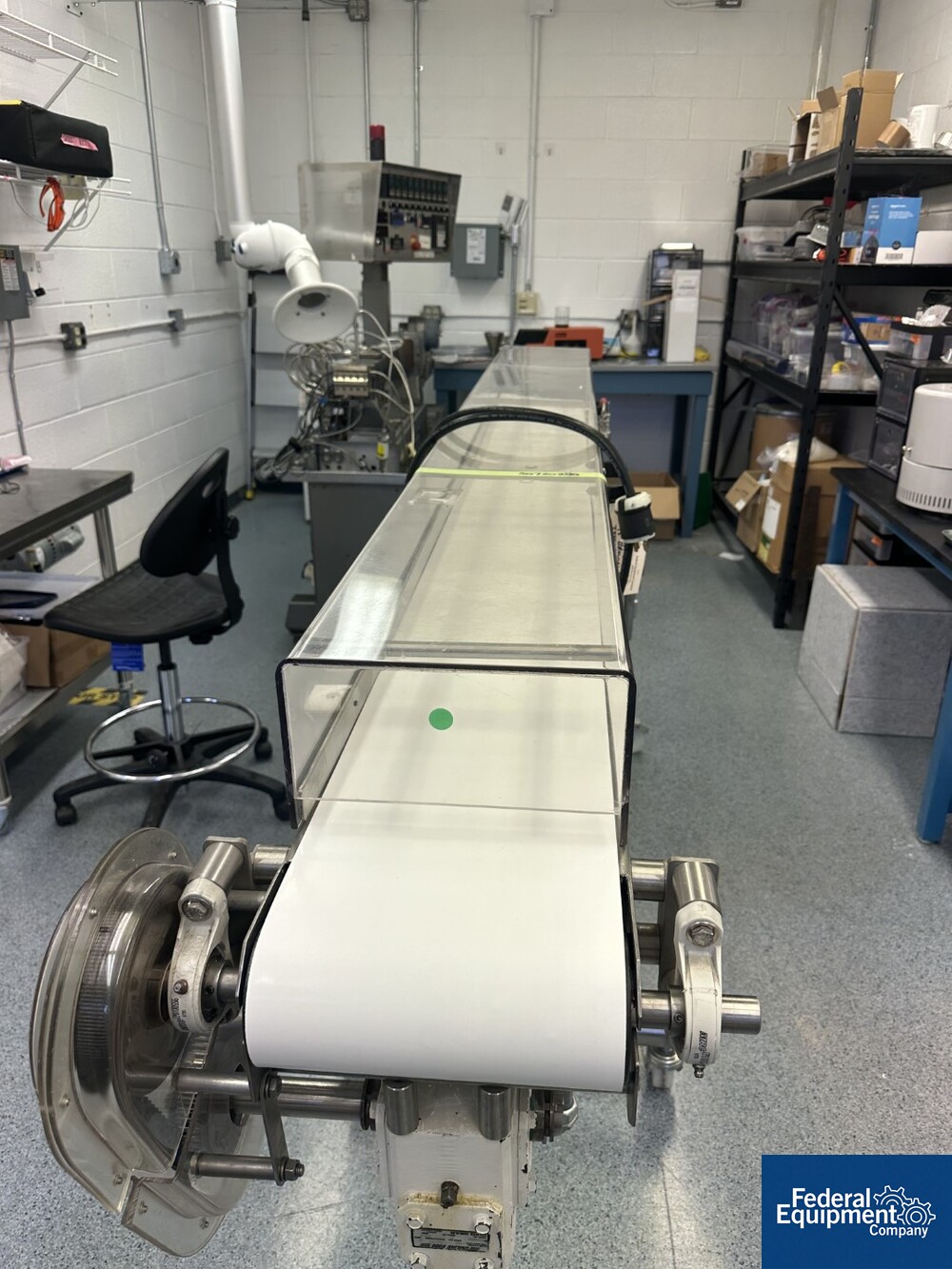

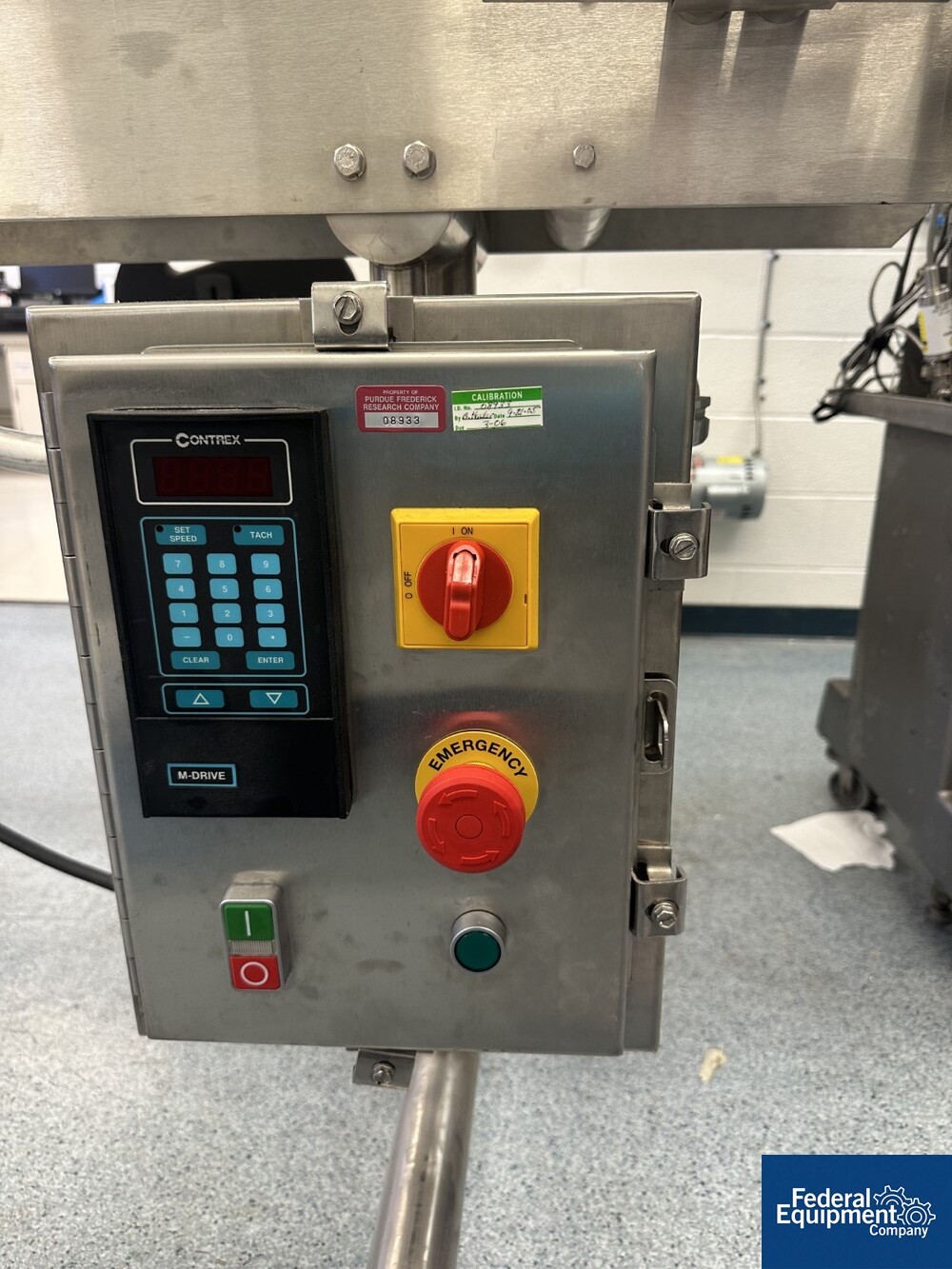

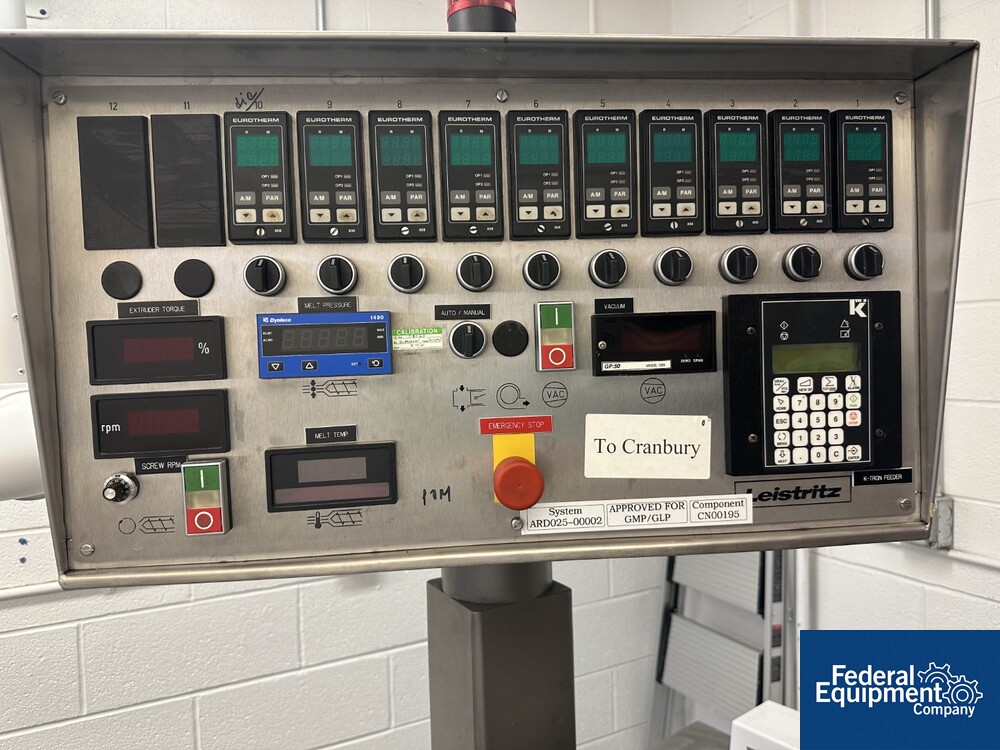

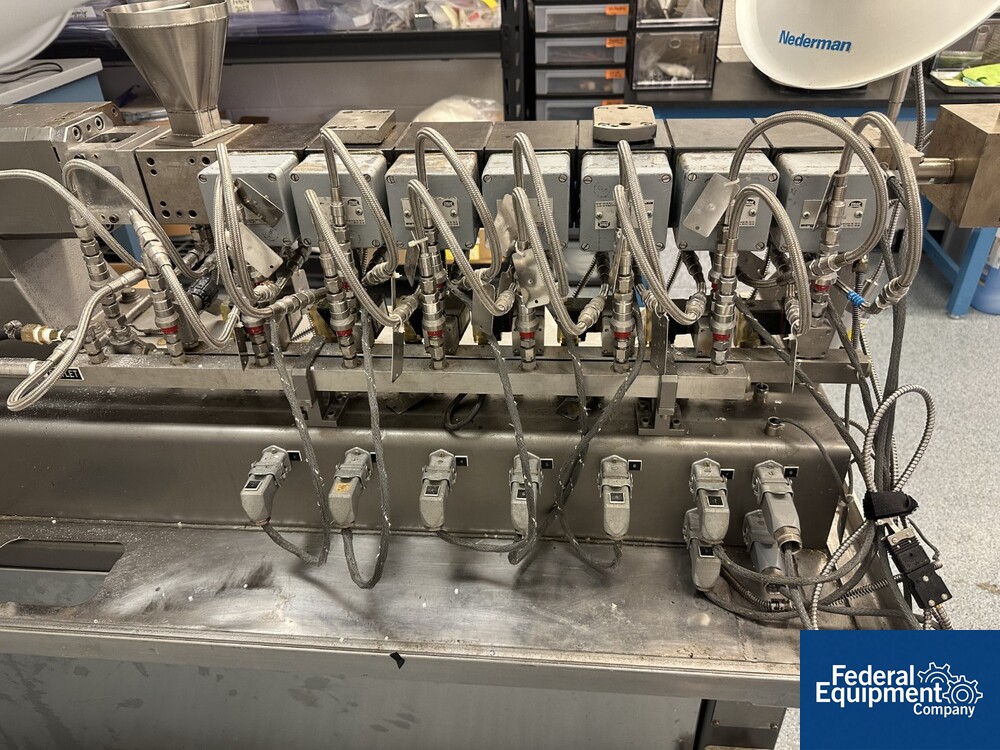

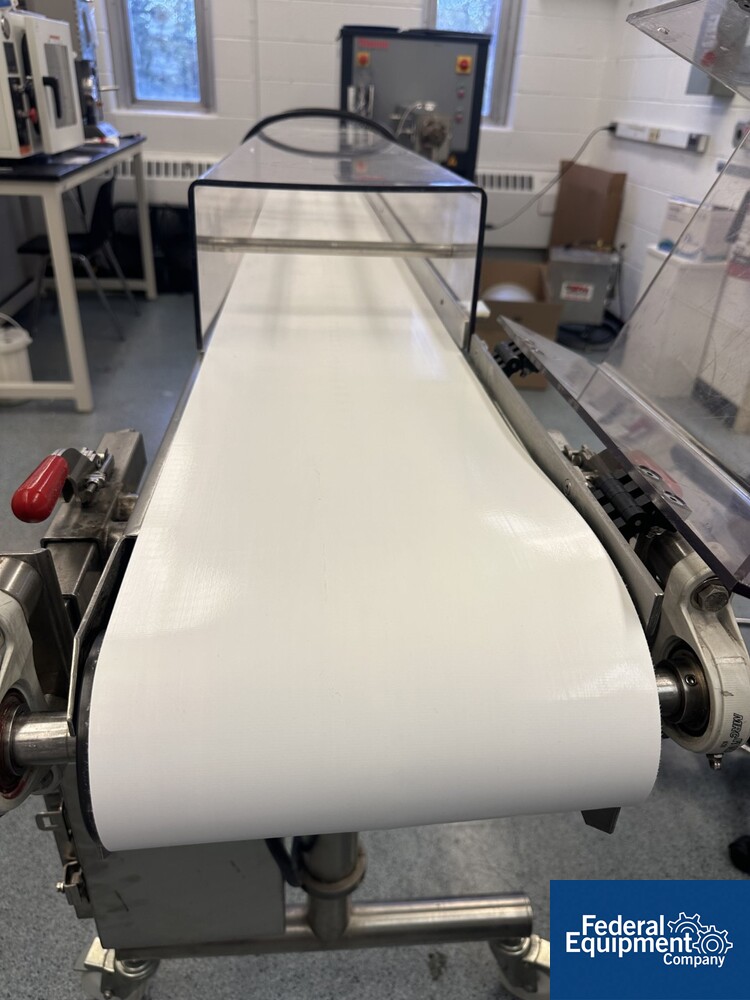

Used Leistritz twin screw pelletizing line, model Micro18-GGL, 18 mm screws, counter rotating screws, 40:1 1/d, 500 rpm screw speed, electrically heated, water cooled barrel, 2.3 kw, 210/260 volt, 2950 rpm de motor with SCR controller, (8) barrel sections with (1) jacketed feed, (1) vented, (1) vented and plugged, (5) non vented barrel sections, on board control panel with (10) Eurotherm controllers, with 10" wide x 96" long cooling conveyor,, Leistritz serial# 481 739. 2" film die and a rod die for the extruder.

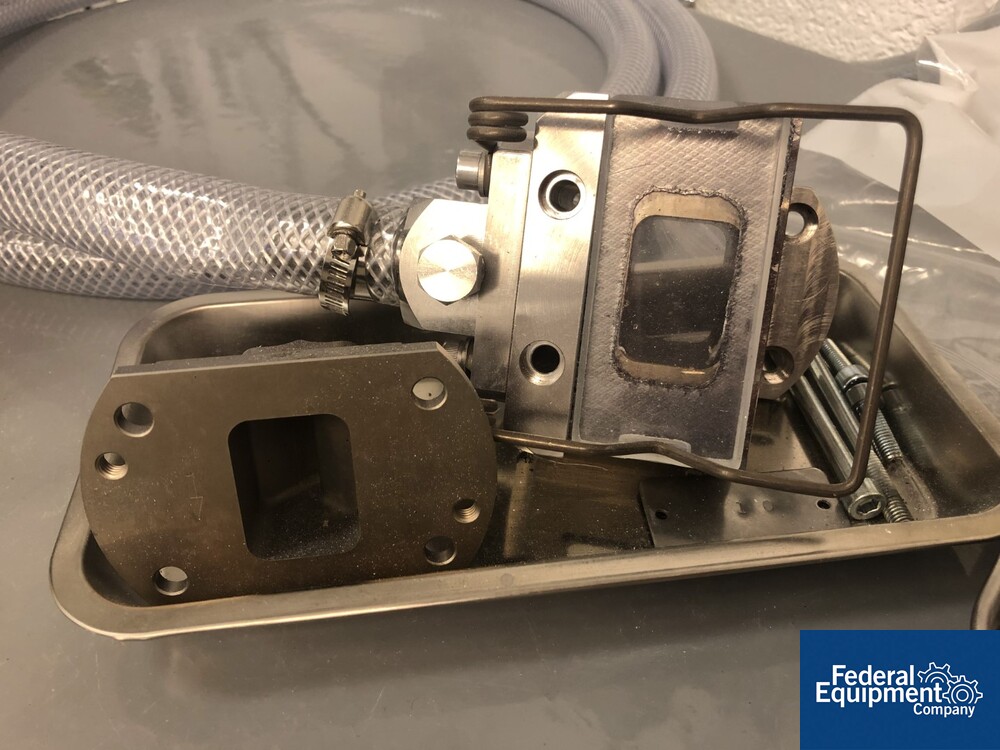

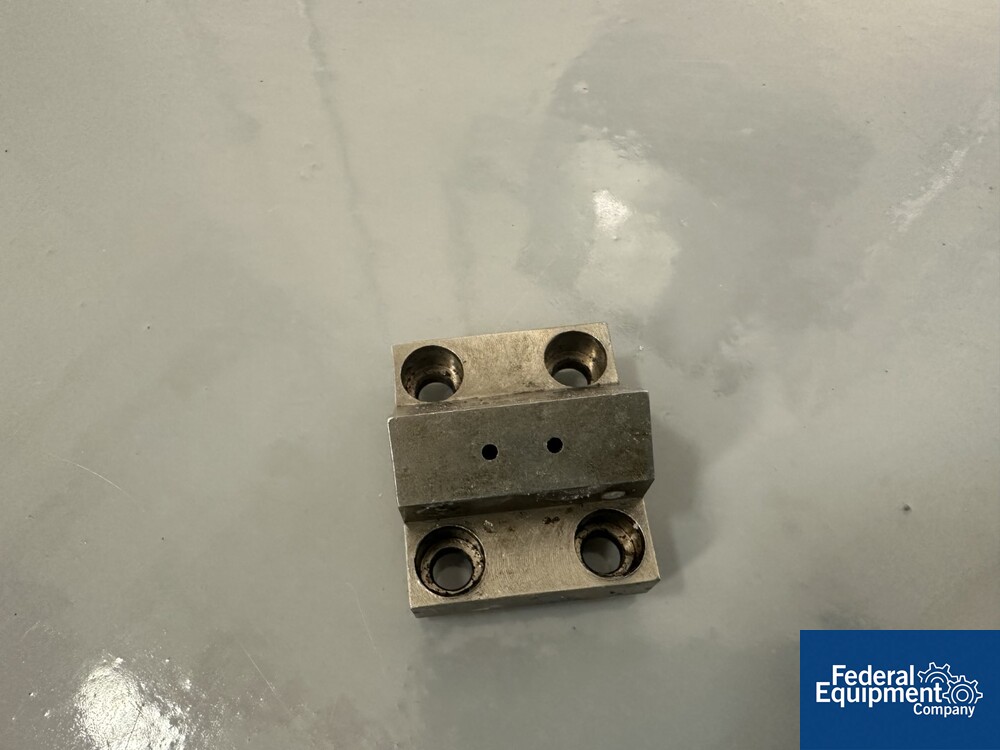

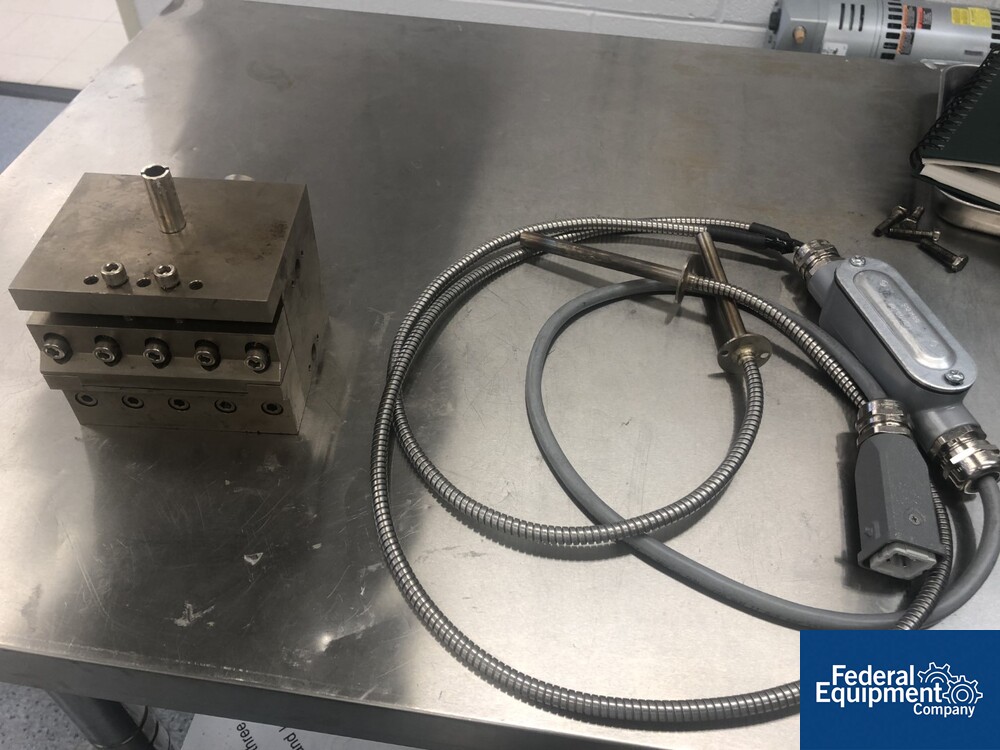

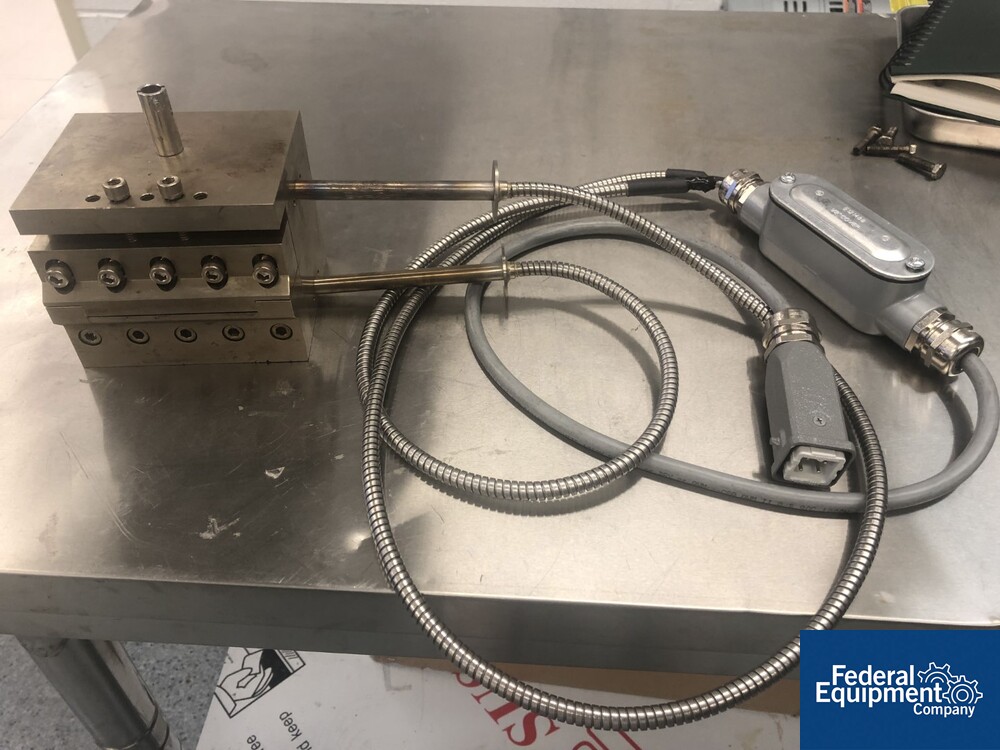

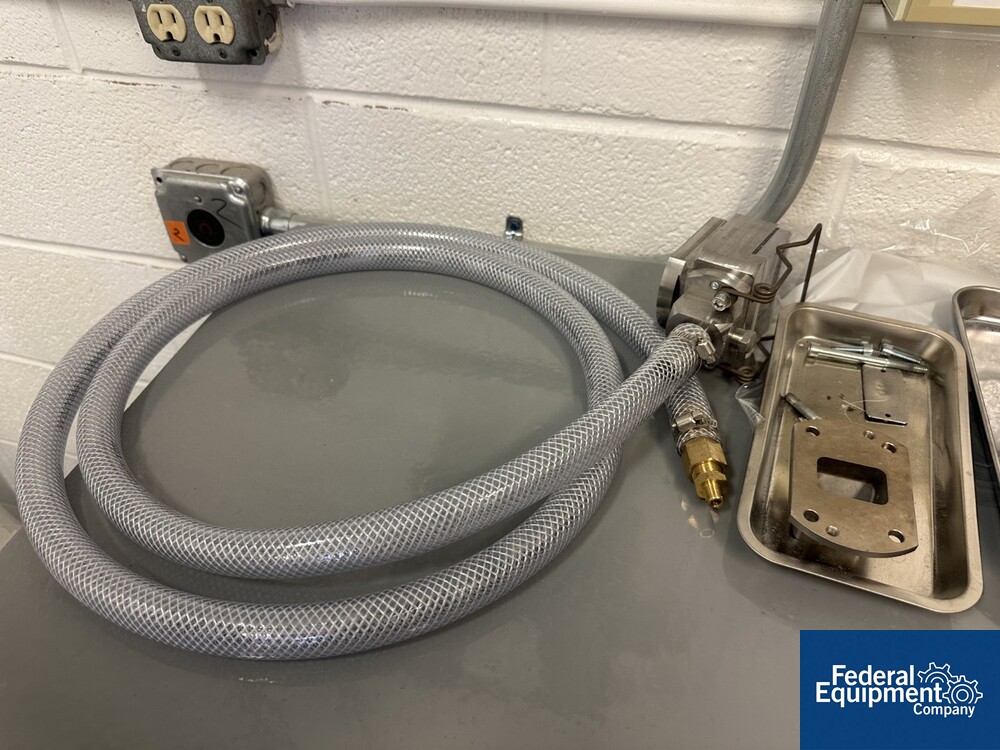

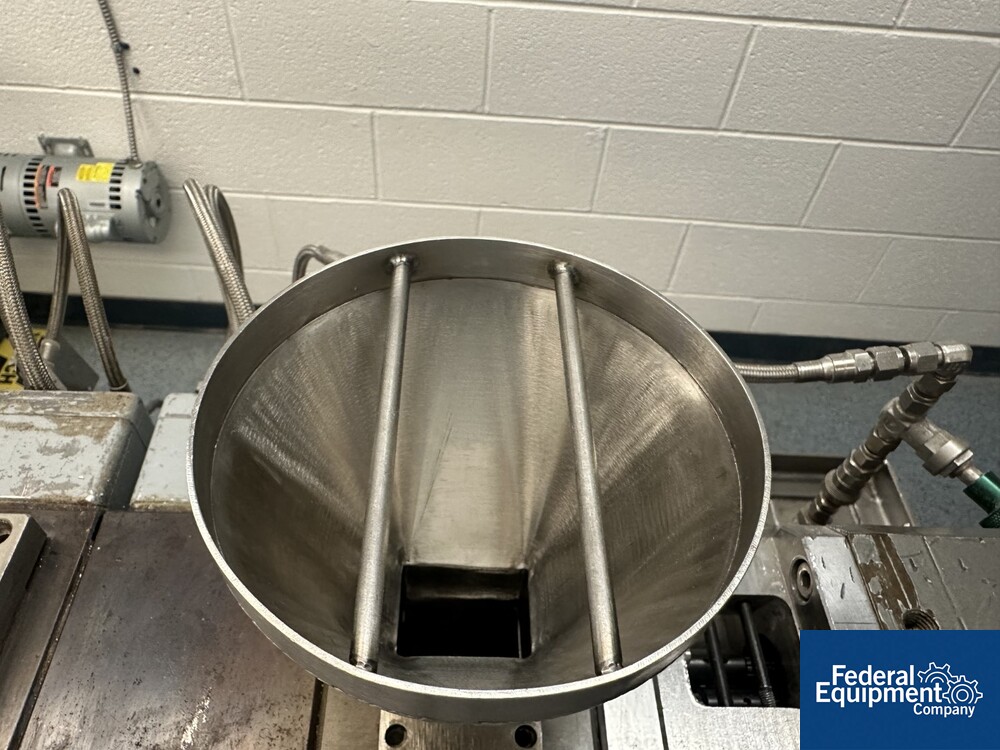

No. Items 1 Drop Chute ZSE 18 Hopper Quan.ty 12 Barrel Insert 2 3 Melt Pressure sensor 14 Melt Temperature Sensor 15 Set of counter rotalng screw 16 Screw Lp wrench_18 mm 1 7 Die Center ring 1 8 Strand die, 2*i2.5mm 19 3" strip die, adjustable lip assembly 10 1 Vacuum Stack assembly• 2' reinforced tube• Degassing insert 111 • Vacuum stack Vacuum pump, GAST, 0.75 hp, 1 phase, 115/230V AC, 10 cfm, 26 in Hg Max vacuum 113 Conveyer belt 14 1 Transformer (optional - $2,000) 1
- Drawings: Yes
- Manuals: Yes
- Model/Type: Micro 18-GGL
- Serial Number: 481 739
